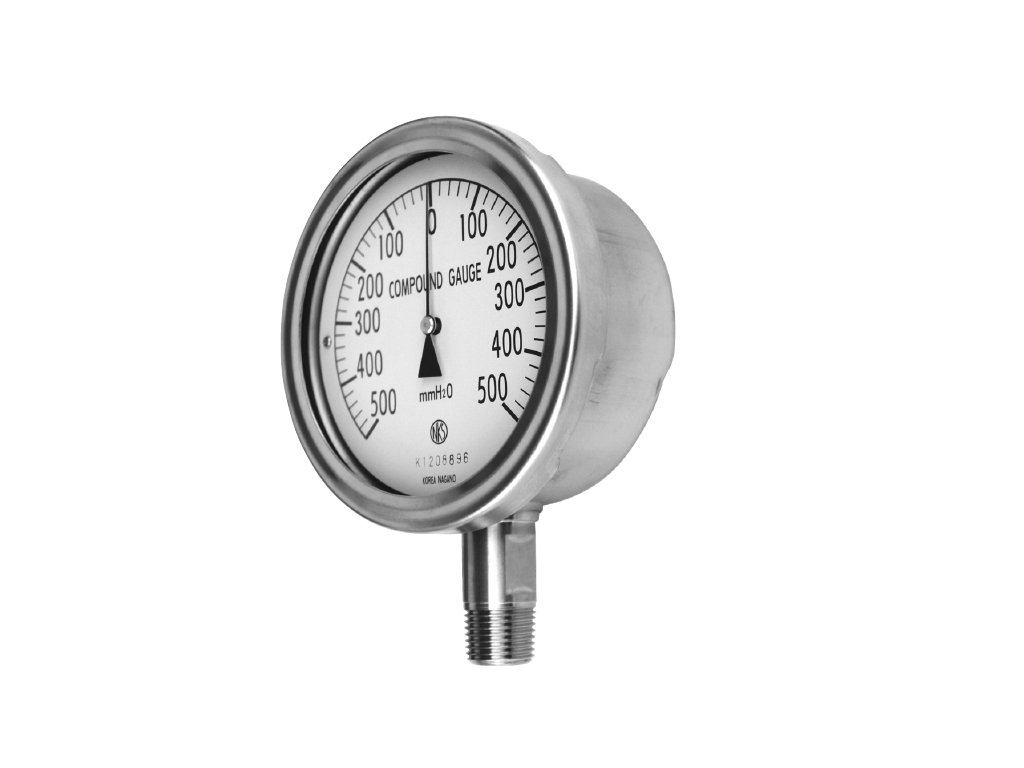

Low Pressure Gauge
 ¸ðµ¨¸í : SL10 , 46 , 47 & SL62 Series
 ÀÛ¼ºÀÚ : ÃÖ°í°ü¸®ÀÚ
Date : 2013-03-04 14:29  |  Hit : 23,707
   SL10,46,47,62.pdf (998.0K) [1009] DATE : 2013-03-04 14:29:07

OUTLINE

This pressure gauge measure a low pressure which
Bourdon tube type pressure gauge cannot measure,
not only directly measuring a pressure but also
measuring capacity quantity and liquid depth in a
tank. However, measuring liquid entering into a
pressure element causes an error of performance.
So, it is requested a medium like air according to an
sir purging method be applied.

FEATURES

• As a hermetic case is applied, pressure measuring
can performed without the effect of dust, etc.
• Any size (in graduations) of pressure gauge can be
selected, making reading easier.
• This gauges is simple in construction, making
measuring and maintenance easier.
