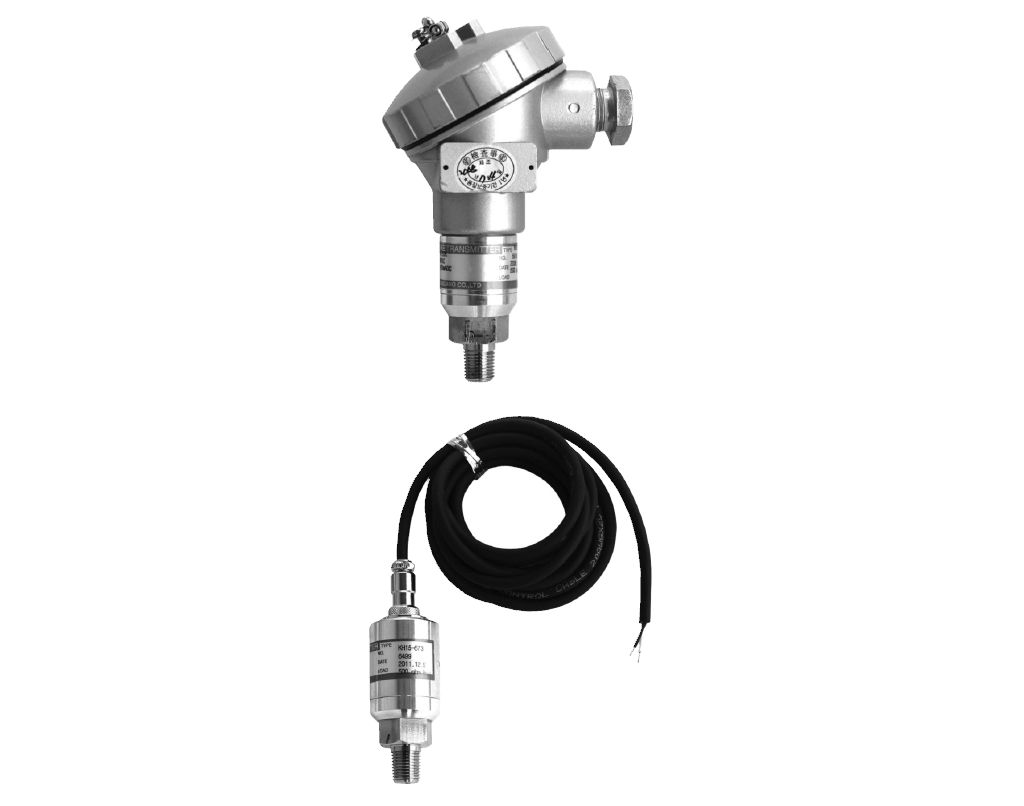

This is detecting unit which used semiconductor
strain gauge and the pressure transmitter which builtin
electronic circuit and pressure is converted into
electricity signal of 4-20mA DC, 0-5V DC or 1-5V DC,
and transmit it. It is more compact compared with the
product up to now, and is the product which let electic
dependability, mechanical dependability improve.
• Because it adopts the sensing parts which used
coating by vaporization type semiconductor strain
gauge, there is durability, stability.
• Because there is not moving element, it is superior
in vibration-proof impact resistance.
• It produces it from range 0.1MPa to 100MPa with
• It is high corrosion resistance to be using metal
diaphragm. It can used liquid for wide applications.
• Electric dependability is high by hybrid IC of circuitry
and is compact/light weight.
